All Aluminum 3 Row Core Radiator D506
All Aluminum 3 Row Core Radiator D506
Core Size: 16''H x 24.7'' W; Overall Size: 21.9'' x 27.9'' x 3.9''
Upper Inlet: 1.5’’ at driver side; Bottom Outlet: 1.77 at passenger side
Trans Cooler Details: 1/2' 20 straight thread G1/4; Mounting Specs: Vert - 10 1/2 & Horizontal - 26 3/4
Vehicle test-fitted prior to market release, ensuring perfect drop-in fit
100% aluminum construction provides greater heat and pressure tolerance, better heat dissipation
Radiator Specification:
Core: 3 row core
Core/Tank Material: all aluminum
Tank Material: all aluminum
Trans Cooler Included

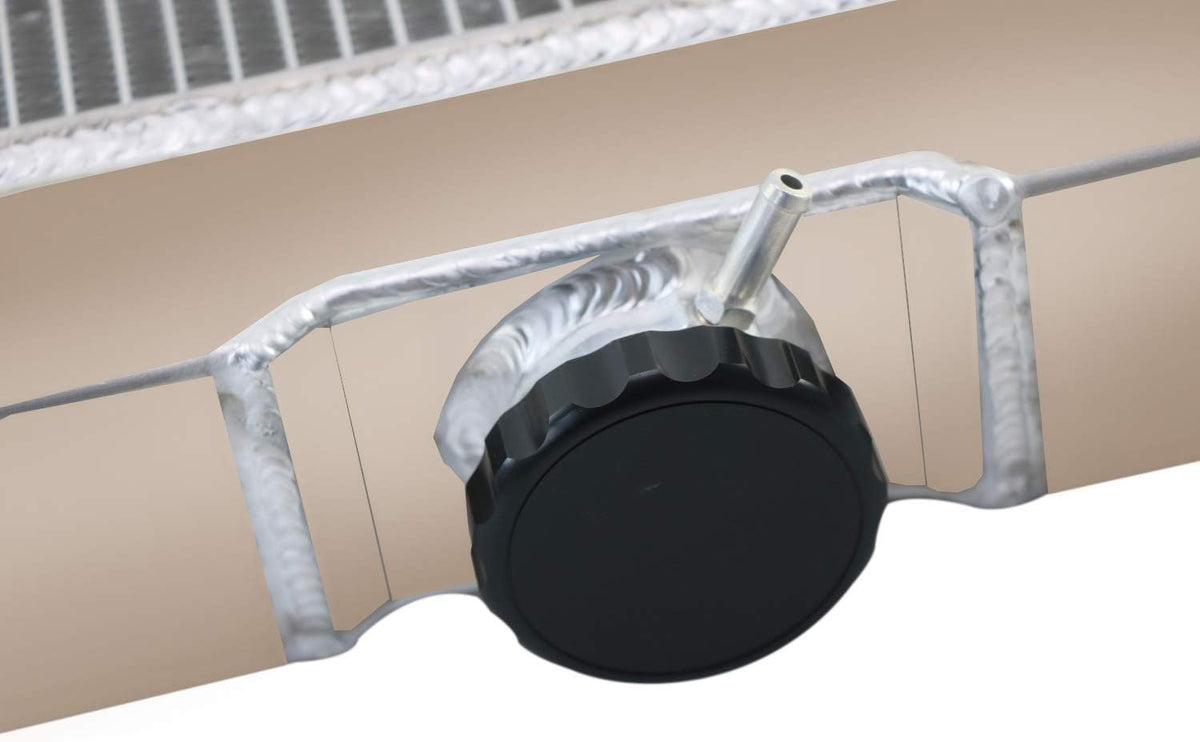

CNC machined filler neck and cap

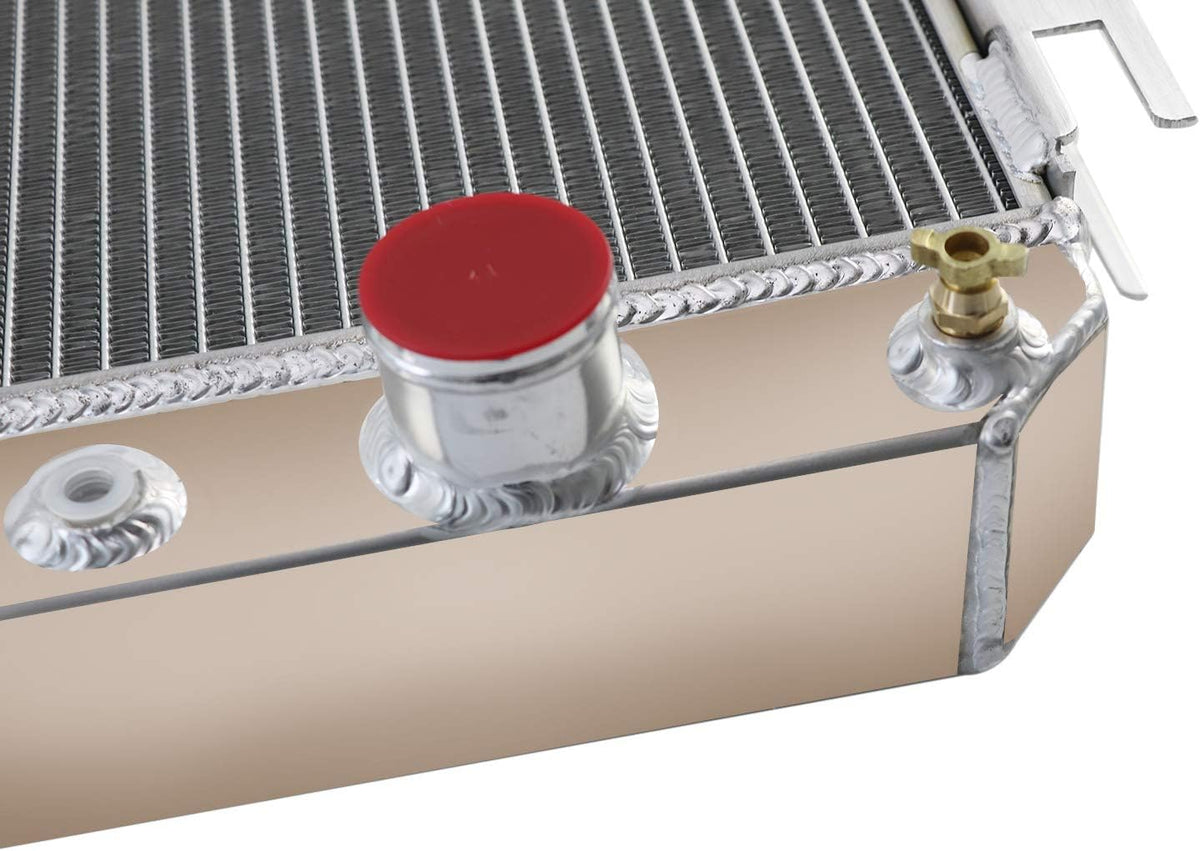

OEM style brass petcock drain
Manufacturer Part Number: 289, SBR289, MC289, DPI289, CC289, CU289, RAD289
Other Part Number: RA289, RK289, CU289, RAD289, DPI289
Interchange Part Number:AE289, EC289, KKS289, Q289, SPTCU289
Superseded Part Number: 040876432895, 3002308, 3002312, 3002313, 3005802, 3007610
This Radiator Compatible with the Following Models of Chevy:
Bel Air
3.8L l6, 63-65
4.1L l6, 65-68
4.6L V8, 63-67
5.0L V8, 68
5.3L V8, 63-68
5.4L V8, 68
6.5L V8, 65-66, 68
6.7L V8, 63-65
7.0L V8, 63, 66, 68
Biscayne
3.8L l6, 6365
4.1L l6, 65-68
4.6L V8, 63, 65-67
5.0L V8, 68
5.3L V8, 63, 65-68
5.4L V8, 68
6.5L V8, 65-68
6.7L V8, 63, 65
7.0L V8, 63, 66-68
Caprice
4.1L l6, 67-68
4.6L V8, 67
5.0L V8, 68
5.3L V8, 67-68
5.4L V8, 68
6.5L V8, 67-68
7.0L V8, 67-68
Chevelle
3.2L l6, 64-65
3.8L l6, 64-65
4.6L V8, 64-65
5.3L V8, 64-65
5.4L V8, 65
6.5L V8, 65
El Camino
3.2L l6, 64-65
3.8L l6, 59-65
4.6L V8, 59-65
5.3L V8, 64-65
5.7L V8, 59-60
Impala
3.8L l6, 63-65
4.1L l6, 65-68
4.6L V8, 63-67
5.0L V8, 68
5.3L V8, 63-68
5.4L V8, 64-68
6.5L V8, 65-68
6.7L V8, 64-65
7.0L V8, 66-68
Kingswood
3.8L l6, 59, 60-61
4.6L V8, 59-61
5.7L V8, 59-61
6.7L V8, 61
